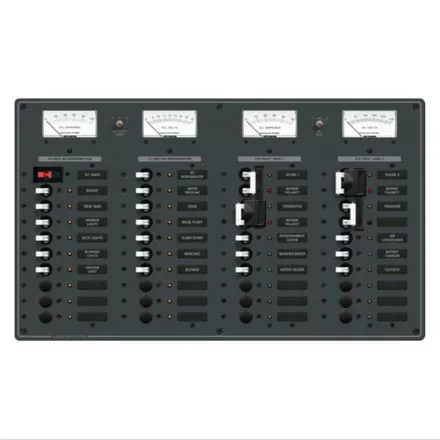

AC/DC Combination Circuit Breaker Panel – 12 x AC + 19 x DC
Combines AC and DC switching, circuit protection, source selection and monitoring into a single panel
Features:
- ON indicating LEDs installed in all circuit positions
- Backlit label positions
- Includes toggle switch to monitor voltage on up to three batteries
- Circuit identification label sets included
- Insulating covers are included with AC/DC 360 Panels
| Part Number | BSS-8186 |
|---|---|
| Style | Traditional Metal |
| Total AC Positions | 3 Sources + 12 positions + Transfer |
| Total DC Positions | Main + 19 positions |
| AC Circuit Breakers | 2 Main, 16A, 1 Main, 32A 1 Transfer, 16A, 6 Branch, 8A |
| DC Circuit Breakers | Main, 100A, 13 Branch, 15A |
| AC/DC Voltage | 230V AC/12V DC |
| Actuator Style | White Toggle |
| AC Meters | 0-250V, 0-50V |
| DC Meters | 8-16V DC, 0-100A DC |
| W x H x D | 495.3mm x 292.10mm x 76.2mm |
