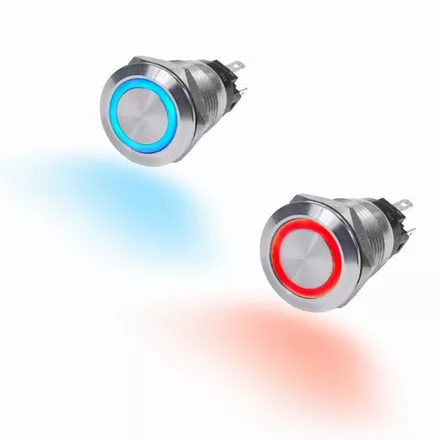

Blue Sea 10A Push Button LED Ring Switch OFF-(ON). Available with blue or red LED.
- 10A continuous
- Single Pole Double Throw or Single Pole Single Throw
- Can be wired for normally open or normally closed
- Available in Blue & Red
- Available in momentary and non-momentary
- Installs with .110inch quick connects (included in retail package)
| Part Number | Colour | Action | Amperage | Nominal Voltage | Max LED Operating Current | Min-Max Operating Temp | Min-Max Storage Temp | Illumination | Max Panel Thickness | Mounting Hole | Switching Cycles | Termination | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BSS-4161 | Blue | OFF-(ON) | 10A @ 12V DC Resistive 3A @ 12V Inductive |
12V DC | 20mA | -30° C – 70° C | -55° C – 85° C | Independent – Separate contacts for LED power | 0.31in (7.87 mm) | ¾” (19mm) | 40,000 | 5 – 0.110inch Quick Connect terminals | 0.09kg |
| BSS-4163 | Red | OFF-(ON) | 10A @ 12V DC Resistive 3A @ 12V Inductive |
12V DC | 20mA | -30° C – 70° C | -55° C – 85° C | Independent – Separate contacts for LED power | 0.31in (7.87 mm) | ¾” (19mm) | 40,000 | 5 – 0.110inch Quick Connect terminals | 0.09kg |
