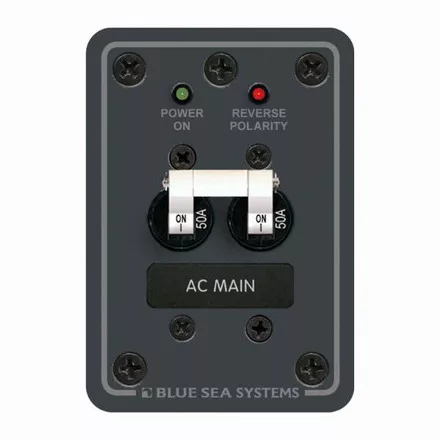

Blue Sea AC Main 50A
- Red reverse polarity indicating LED
- Safety ground screw on panel back
- Combines switching and circuit protection into a single device
- “Trip Free” design cannot be held “ON” during fault current condition
| Part Number | Nominal Voltage | Maximum Voltage | Final Panel Finish | Panel Material | Primary Finish | Height | Width | Weight |
|---|---|---|---|---|---|---|---|---|
| BSS-8079 | 120V AC | 277V AC 65V DC |
2-part Polyurethane slate gray finish | Heavy 1/8″ aluminum 5052 alloy | Mil-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance | 66.8mm | 95.25mm | 0.23kg |
