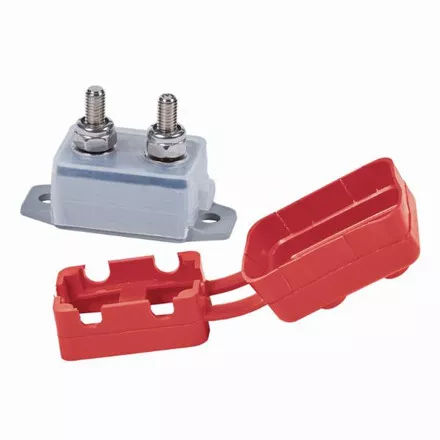

Blue Sea Marine Grade Short Stop Circuit Breakers
Use a Circuit Breaker instead of a Fuse
- Corrosion resistant materials to withstand harsh environments
- IP64 water resistant boot protects against dust and splashing water
- Push-to-reset operation only disconnects when tripped
- Stainless steel lock nuts for secure connections
- Red insulating boot included (retail product only)
| Part Number | Amps | Max Voltage | Circuit Breaker Type | Terminal Stud | Terminal Stud Torque | Interrupt Capacity | Min Operating Temp | Max Operating Temp | Weight |
|---|---|---|---|---|---|---|---|---|---|
| BSS-7151 | 10A | 28V DC | Thermal trip, manual reset | 10-32 | 20 in-lb (2.26 Nm) | 2500A @ 28V DC | -10° C | 60° C | 0.03kg |
| BSS-7152 | 15A | 28V DC | Thermal trip, manual reset | 10-32 | 24 in-lb (2.71 Nm) | 2500A @ 28V DC | -10° C | 60° C | 0.03kg |
| BSS-7153 | 20A | 28V DC | Thermal trip, manual reset | 10-32 | 20 in-lb (2.26 Nm) | 2500A @ 28V DC | -10° C | 60° C | 0.03kg |
| BSS-7154 | 25A | 28V DC | Thermal trip, manual reset | 10-32 | 20 in-lb (2.26 Nm) | 2500A @ 28V DC | -10° C | 60° C | 0.03kg |
| BSS-7155 | 30A | 28V DC | Thermal trip, manual reset | 10-32 | 20 in-lb (2.26 Nm) | 2500A @ 28V DC | -10° C | 60° C | 0.03kg |
| BSS-7156 | 40A | 28V DC | Thermal trip, manual reset | 10-32 | 20 in-lb (2.26 Nm) | 2500A @ 28V DC | -10° C | 60° C | 0.03kg |
| BSS-7157 | 50A | 28V DC | Thermal trip, manual reset | 10-32 | 20 in-lb (2.26 Nm) | 2500A @ 28V DC | -10° C | 60° C | 0.03kg |
