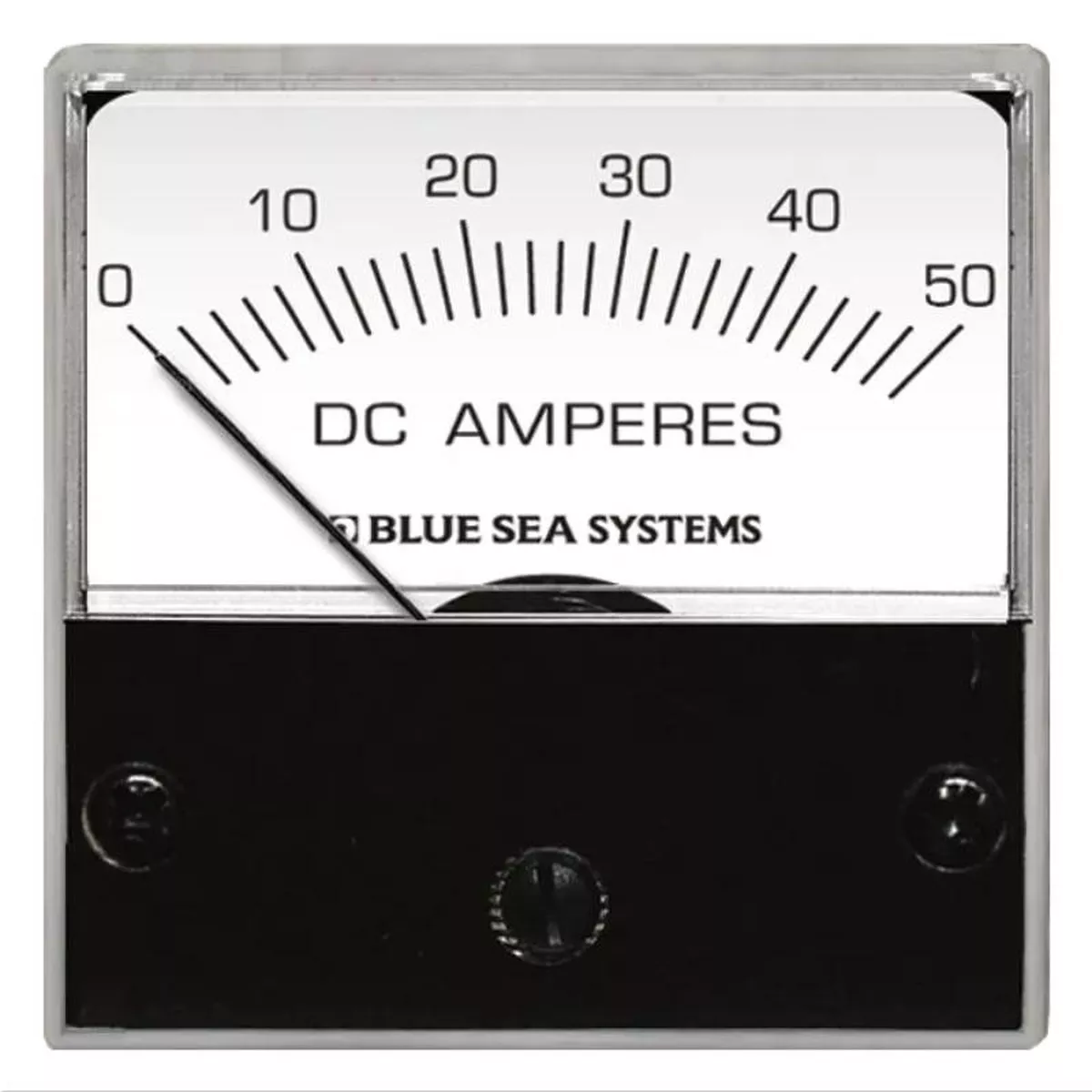

DC Analog Micro Ammeter with External Shunt – 0-50V DC
Meters with backlighting for low light conditions
- Includes appropriate external DC shunt when required
- Backlit meter face (separate 12 or 24V DC backlight connections)
- Function: Micro Ammeter 0-50A DC
| Part Number | Operating Amps (Metre) | Operating Amps (Backlight) | Shunt Type | Connection |
|---|---|---|---|---|
| BSS-8041 | 1 mA at full scale | 16 mA@12V DC, 20 mA@24V DC | External – 50 mV at meter full scale | 2 wire, 3 connections for backlight |
