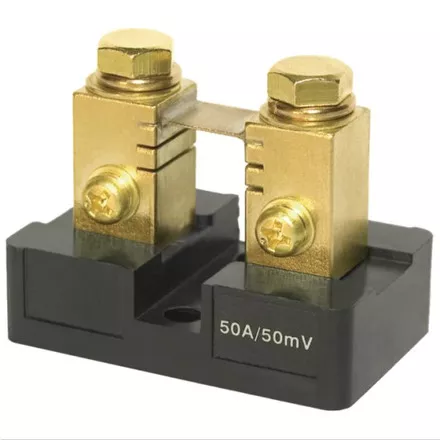

DC Shunt 50A DC – Use with DC Ammeters
For continuous operation, it is recommended that shunts not be run at more than two-thirds (66%) the rated current under normal conditions
| Shunt Type | Resistive |
|---|---|
| Full Scale | 50 mV |
| Amperage Max. Operating | 66% of Rated Current |
| Amperage Int. (5 min.) | 100% – Full scale rating |
| Amperage Int. (3 sec.) | 300% – Full scale rating |
| Part Number | For Use With | Ratio |
|---|---|---|
| BSS-9228 | Analog Ammeter | 50A DC/50mV DC |
