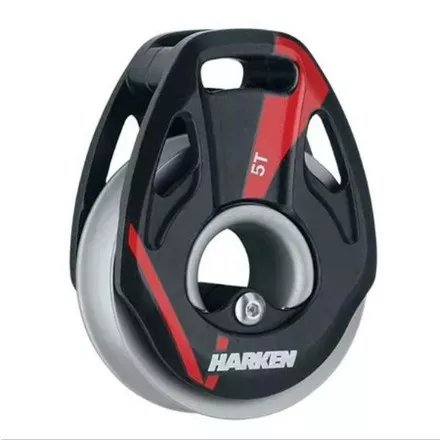

Harken 5T Aluminum V™ Block
The V block delivers another breakthrough in Harken’s loop block series for Grand-Prix racers.
Harken engineers have simplified the mechanics by combining the axial and thrust bearings into a single bearing set of V-shaped titanium rollers. The result is a strong, lightweight block that offers unmatched efficiency at high loads, while spinning freely at low loads for smooth easing in light air.
Harken V blocks have aluminum sideplates, titanium sheave, and captive titanium roller bearings. V blocks are easy to disassemble for inspection and maintenance.
- Download Instruction Manual
- Download Harken Custom Products Manual
| Part Number | HKN-3296AL |
| Sheave Ø (mm) | 62 mm |
| Sheave Ø (in) | 2 7/16 in |
| Length (mm) | 84 mm |
| Length (in) | 3 5/16 in |
| Weight (g) | 191 g |
| Weight (oz) | 6.74 oz |
| Maximum line Ø (mm) | 13 mm |
| Maximum line Ø (in) | 1/2 in |
| Maximum working load (kg) | 5000 kg |
| Maximum working load (lb) | 11000 lb |
| Breaking load (kg) | 10000 kg |
| Breaking load (lb) | 22000 lb |
