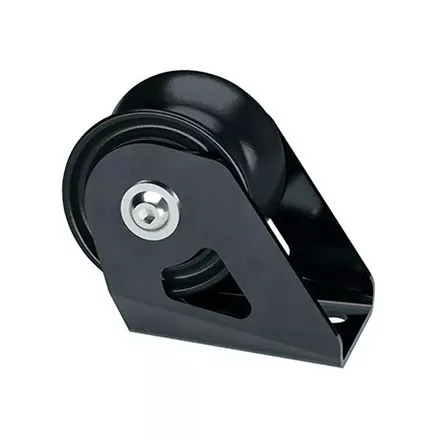

Harken Tulip Vertical Fixed Block
In these applications, one fixed tulip block can replace a block plus a baseplate plus a shackle or loop
| Part Number | Sheave Diameter | Length | Height | Width | Weight | Max. Line Dia. | Fasteners | Max. Working Load | Breaking Load |
|---|---|---|---|---|---|---|---|---|---|
| HKN-9030 | 45mm | 69mm | 57mm | 42mm | 187g | 12mm | 6mm | 1247kg | 2495kg |
| HKN-9031 | 60mm | 91mm | 76mm | 54mm | 400g | 14mm | 8mm | 2268kg | 4536kg |
| HKN-9032 | 75mm | 114mm | 95mm | 66mm | 724g | 14mm | 10mm | 3629kg | 7257kg |
