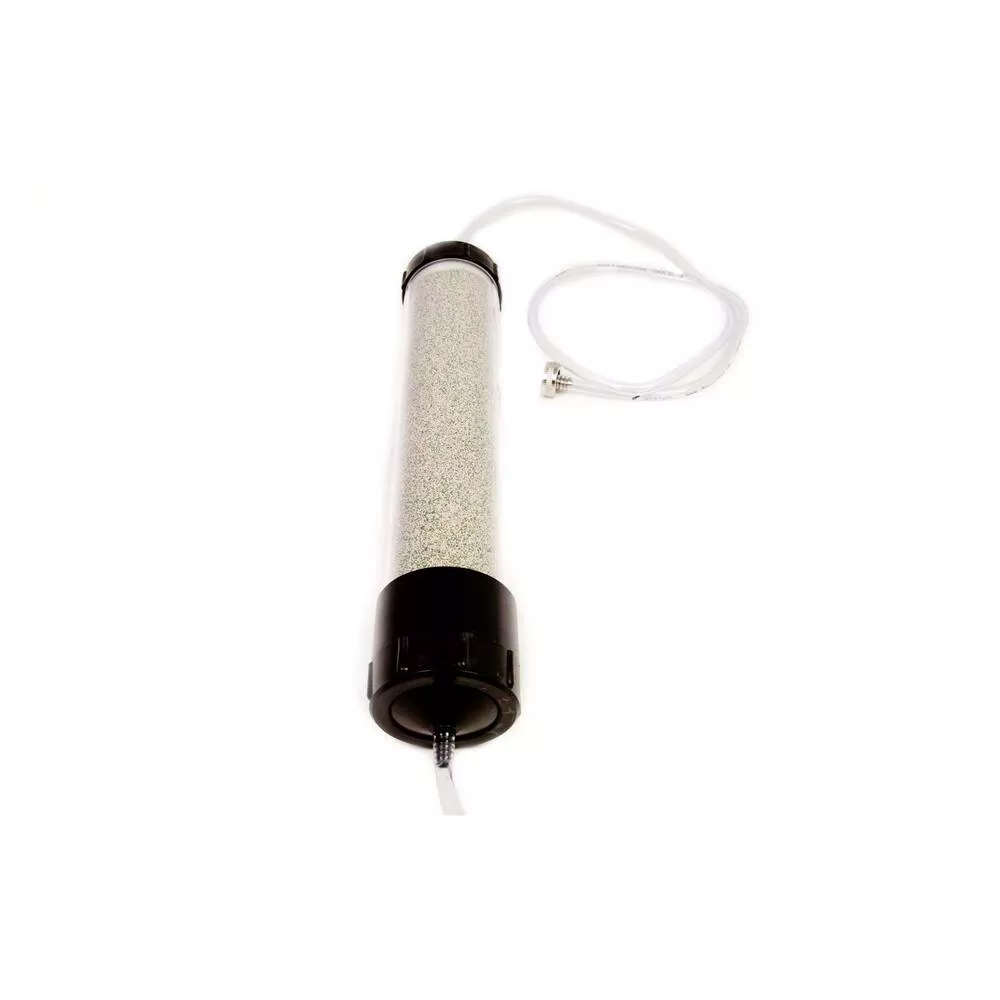

ION Exchanger WP78
The WP78 ion exchanger is designed for producing your own battery or demineralized water, which can also serve as distilled water. Connected to a cold water system, water flows through the WP78 where resin removes mineral salts such as calcium, iron, magnesium, nitrates, chlorides, sulphates, and carbonates. When the color indicator changes from green to blue, it signals that the resin charge is spent and ready for replacement.
The capacity of the WP78 depends on the water quality and requires a DH analysis for precise determination. It offers quality water purification with various maximum capacities based on contamination levels:
- Capacity max. 750 litres at 3d (50 ppm) contamination
- Capacity max. 400 litres at 6d (100 ppm) contamination
- Capacity max. 200 litres at 11d (200 ppm) contamination (Rotterdam water)
- Capacity max. 130 litres at 17d (300 ppm) contamination
- Capacity max. 90 litres at 22d (400 ppm) contamination
- Capacity max. 40 litres at 28d (500 ppm) contamination
- Water flow rate: max. 45 litres per hour
- Max water pressure in device: 0.63 bar
- Max water supply pressure: 3.5 bar
- WP78 water quality: 1.5/0.5 micro Siemens per cm³ (0.7–2 mega Ohm per cm³)
- PH range: 6.0 – 7.0 (7.0 is drinking water)
- Quality control: colour indicator
- Dimensions: diameter 90 mm, height 520 mm
- Weight: 2.25 kg
- Product code: 15.18.500
