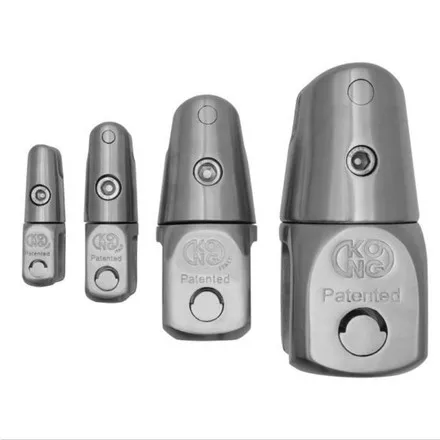

Kong Anchor Swivel Connector – Tested

Original price was: $116.00.Current price is: $79.09.

Sale!
SKU: KNG-644080000KK Category:
Share

KONG’s Swivel Anchor Connector made of high quality stainless steel AISI 316.

The KONG  will ensure your anchor slides perfectly through the ferrule without any problems or damage to the sheaving. It will ensure your anchor straightens up automatically and is correctly positioned on board.

The swivel connector also ensures the anchor will hold on the seabed without the chain twisting. The bigger version 644.16 is designed for anchors up to 150kg.

KONG is the only tested anchor swivel available on the market.

KONG Swivel Assembly Diagram

When using a one-piece solid anchor, the risk of lateral stress (where the load is not in-line) greatly increases. Using an appropriate shackle between the anchor shank and swivel may be advisable to reduce lateral loads.

Allow anchor to rotate and self-position prior to hauling aboard to avoid damaging your KONG Anchor Swivel Connector.

Breaking loads of anchor components should decrease as follows:
A. Deck
B. Bow Roller Attachment
C. Chain
D. Anchor Connector

Part Number Suits Chain Product Weight Max Load (straight) Max Load (angled without shackle) Safe Working Load (SWL)
KNG-644080000KK 6 to 8mm 240g 2,500kg 850kg 850kg
KNG-644100000KK 8 to 12mm 550g 5,000kg 2,000kg 2,000kg
KNG-644120000KK 12 to 13mm 2.35kg 9,500kg 3,000kg 3,000kg
KNG-644160000KK 16 to 20mm 5.00kg 20,000kg 5,000kg 5,000kg

KONG ANCHOR SWIVEL DIMENSIONS

Part Number Suits Chain Overall Length (A) Overall Width (B) C D E F
KNG-644080000KK 6 to 8mm 93mm 28mm 16mm 10mm 19mm 9mm
KNG-644100000KK 8 to 12mm 117mm 36mm 22mm 13mm 23mm 13mm
KNG-644120000KK 12 to 13mm 155mm 66mm 35mm 18mm 30mm 17mm
KNG-644160000KK 16 to 20mm 190mm 86mm 43mm 22mm 42mm 20mm

KONG Anchor Swivel Dimensions
