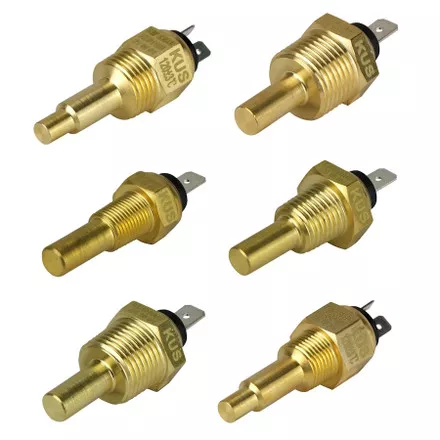

Manufactured by KUS, this range of oil temperature sender units are compatible with most brands of temperature gauges.
Available with a range of threads to suit different housings, these brass temperature sensors will operate up to a maximum of 150° Celsius.
Models 40007 & 40008 incorporate a temperature detection and alarm function at 120° Celsius.
- Voltage: 6V / 24V
- Max Temperature: 150° Celsius
| Part Number | Thread | Switch1 | Connector | Diameter (∅) | Overall Length (L1) | Depth (L2) |
|---|---|---|---|---|---|---|
| SAW-40005 | 1/8″-27 NPT | N/A | Single Plate | 7.5mm | 28.5mm | 51.0mm |
| SAW-40004 | 1/4″-18 NPT | N/A | Single Plate | 7.5mm | 28.5mm | 51.0mm |
| SAW-40006 | 3/8″-18 NPT | N/A | Single Plate | 7.5mm | 28.5mm | 51.0mm |
| SAW-40007 | 3/8″-18 NPT | 120° Celsius | Double Plate | 10.7mm | 41.0mm | 71.5mm |
| SAW-40008 | 1/2″-14 NPT | 120° Celsius | Double Plate | 10.7mm | 41.0mm | 71.5mm |
| SAW-40003 | M18 x 1.5 | N/A | Single Plate | 7.5mm | 28.5mm | 51.0mm |
1 Alarm Switch Rated Power: 1.2W~3W, Temperature alarm tolerance: ±3C.
