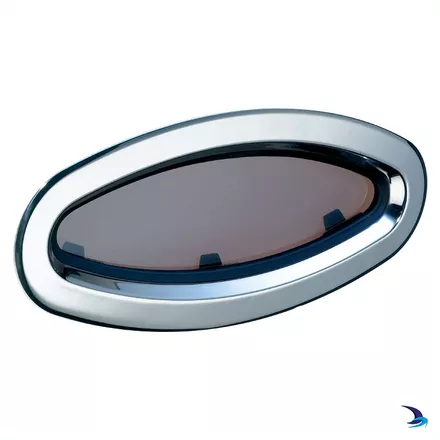

Lewmar Portlight – Stainless Steel – Size 8
Manufactured from mirror polished stainless steel, the opening version portlight is supplied fitted with friction hinges and low profile handles.
The portlights present a modern clean look, thanks to the hinge positioning and integrated handles (on the opening version) which allow a clear view. This range can be installed on 9mm to 30mm thick surfaces.
Features:
- Join-less polished stainless steel outer frame
- Handles and hinges (opening version) are fitted to the outer edge of the lens for unobstructed visibility
- Quick action closing handles (opening version)
- Friction hinges to hold the smoked acrylic window open (opening version)
- White ABS trim, including insect screen
- CE Approved for Area 2A
| Part Number | Version | Size | Trim Colour | Outside X x Y (L x W) | Cut Out X1 x Y1 (L x W) | Radii R | Radii R1 | Height Z | Acrylic | Lewmar Part No |
|---|---|---|---|---|---|---|---|---|---|---|
| LEW-170989 | Fixed | 8 | Chrome | 196mm x 452mm | Refer instructions | N/A | – | 4mm | 10mm | 393810862 |
| LEW-170988 | Opening | 8 | Chrome | 196mm x 452mm | Refer instructions | N/A | – | 4mm | 10mm | – |
Explore the range of Lewmar’s Standard stainless steel portlights:
