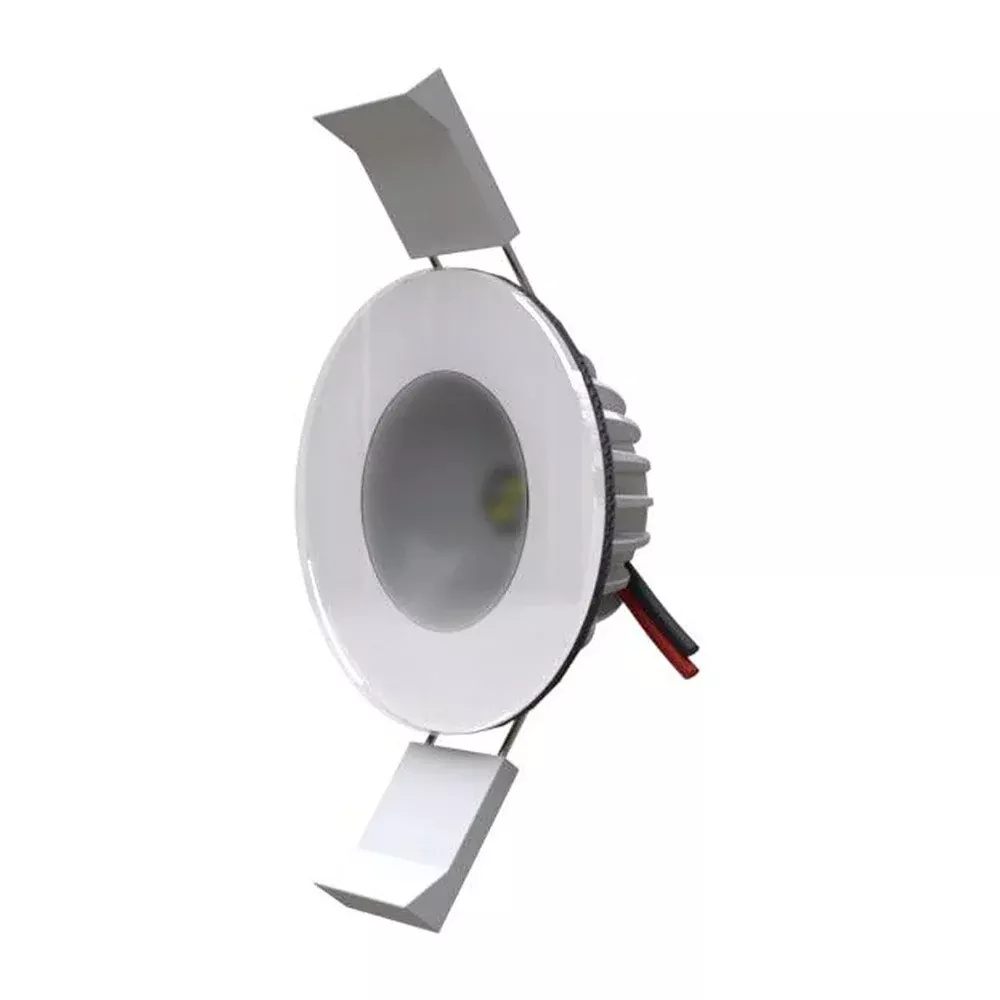

Lumishore ECLIPSE DL55 Blue/White Downlight – White Finish [010-04475-00]

ECLIPSE DL55 Blue/White Downlight – White Finish

Lumishores ECLIPSE Downlights offer exceptional lighting for various indoor and outdoor overhead areas on board.

They are fully water-sealed and have an IP67 rating. Installation is straightforward with a 2-wire connection and a shallow depth of just 21mm (0.83).

Available in White + RGB, dual color blue and white, or single color blue or white, you can select either a black or white finish to match your boat’s aesthetic.

Features:

• Dual Color
• 3 Year Warranty
• ECLIPSE Collection

Specifications:

• LED Type: 2 x 3W Blue & White LEDs
• Customer Control Options: On/Off Switch or ECLIPSE Command Center
• Electrical Installation: Simple 2-Wire Installation
• Supply Voltage Range: 12V DC Only (10 – 15V DC)
• Max Current Draw (12/24V DC): 0.4A
• Ingress Protection: IP67
• Front Diamater (Bezel): 64.0mm (2.519″)
• Profile: 3.5mm (0.137)
• Hole Diameter for fitting: 50.8mm (2.0″)
• Mechanical Installation: Stainless Steel Spring Clips

Quick Guide (pdf)
