Terminal Strips
- Use as a common negative/neutral bus for AC or DC systems. Dual terminal strips in 4 or 8 screw positions on 3/4? centers are secured to a high density insulated base. All hardware, bus material and fasteners are nickel-plated brass.
- 8 screws accommodate various size ring terminals and each terminal strip is rated for 100 amps.

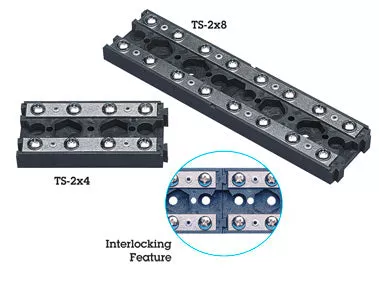

- Interlocking bases allow use of multiple terminal strips and bus bars (described below) to produce secure and neat wiring assemblies. The terminal strip bases have provisions for either 8 or 10 mounting screws, and no conductive parts in the base are exposed to the mounting surface.
| Model | Total of Base Terminals | Size |
| TS-2×4 | 8 | 3 1/16? x 1 1/2? |
| TS-2×8 | 16 | 6 1/16″” x 1 1/2″” |
