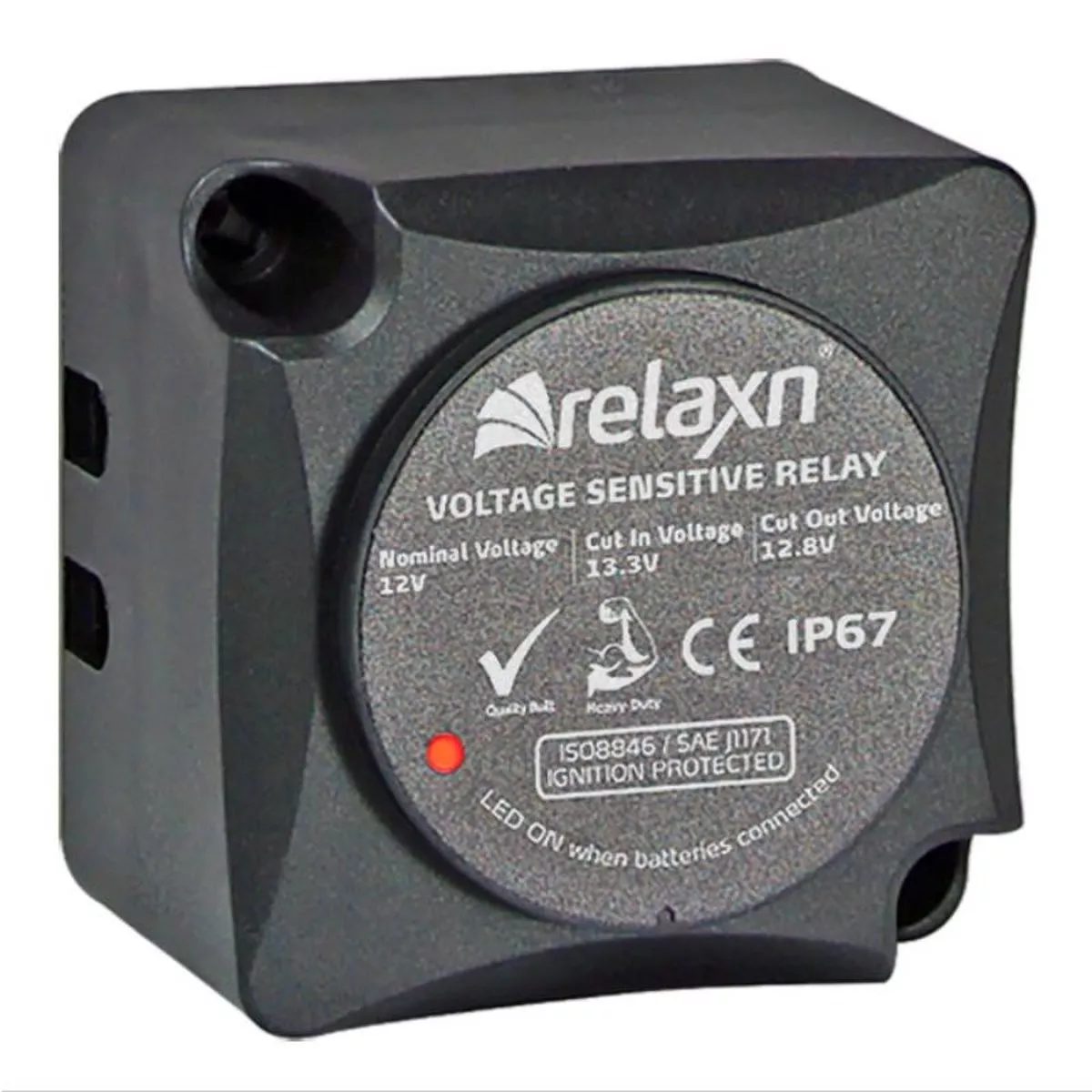

Ideal for dual battery systems or to switch high current appliances. Suits for ATV, boats, RV’s, marine vehicle, caravan and truck.
- VSR allows 2 batteries to be charged at the same time.
- No voltage drops comparing to battery isolator diodes (0.6V).
- Robust glass fiber reinforced nylon enclosure.
- Built-in LED indication (ON when VSR engages).
- Surface or panel mount options provide flexibility when installing.
- Optional Storage Mode allows zero power consumption when the engine is off.
- CE ISO8846 / SAEJ1171 Ignition Protected.
- Patented Made in Taiwan.
| Part Number | Cut Out Voltage | Continuous Rating | Intermittent Rating | Power Consumption | Terminal Studs | Nominal Voltage | Cut In Voltage | W x H x D |
|---|---|---|---|---|---|---|---|---|
| SAW-53083 | 12.8V | 125 Amps | 140 Amps | 10mA (Standby) / 330mA (Engage) / 0mA (Storage) | M6 | 12V | 13.3V | 69mm x 69mm x 58mm |
