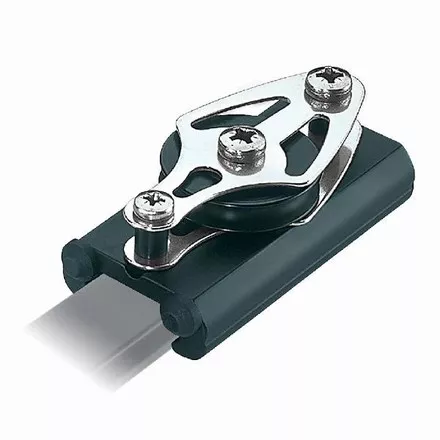

Ronstan Series 22 Control End with Single Sheave and Becket
Series 22 control end with single sheave and becket. Control ends with high performance Torlon® ball bearing sheaves are used with mainsheet traveller and genoa sheeting systems to create purchase systems for easy adjustment of car position under load.
Control end sheaves are 40mm (1 9/16”) diameter and suit up to 8mm (5/16”) rope.
Materials and Specifications
- Body: alloy
- Sheave: acetal
- Buffers: rubber
- Cheeks: Grade 316 stainless steel
- Track profile: ball bearing
- Ball bearing upgrade sheave available seperately
Applications
- Mainsheet systems on boats to 1m (33ft)
- Genoa sheet systems on boats to 11m (36ft)
- Spinnaker pole systems on boats to 1m (33ft)
- Outhaul car for boats to 8m (26ft)
| Part Number | Dimensions (LxW) | Weight | BL | MWL |
|---|---|---|---|---|
| RON-RC12285 | 103 x 45mm | 168g | 900kg | 320kg |
