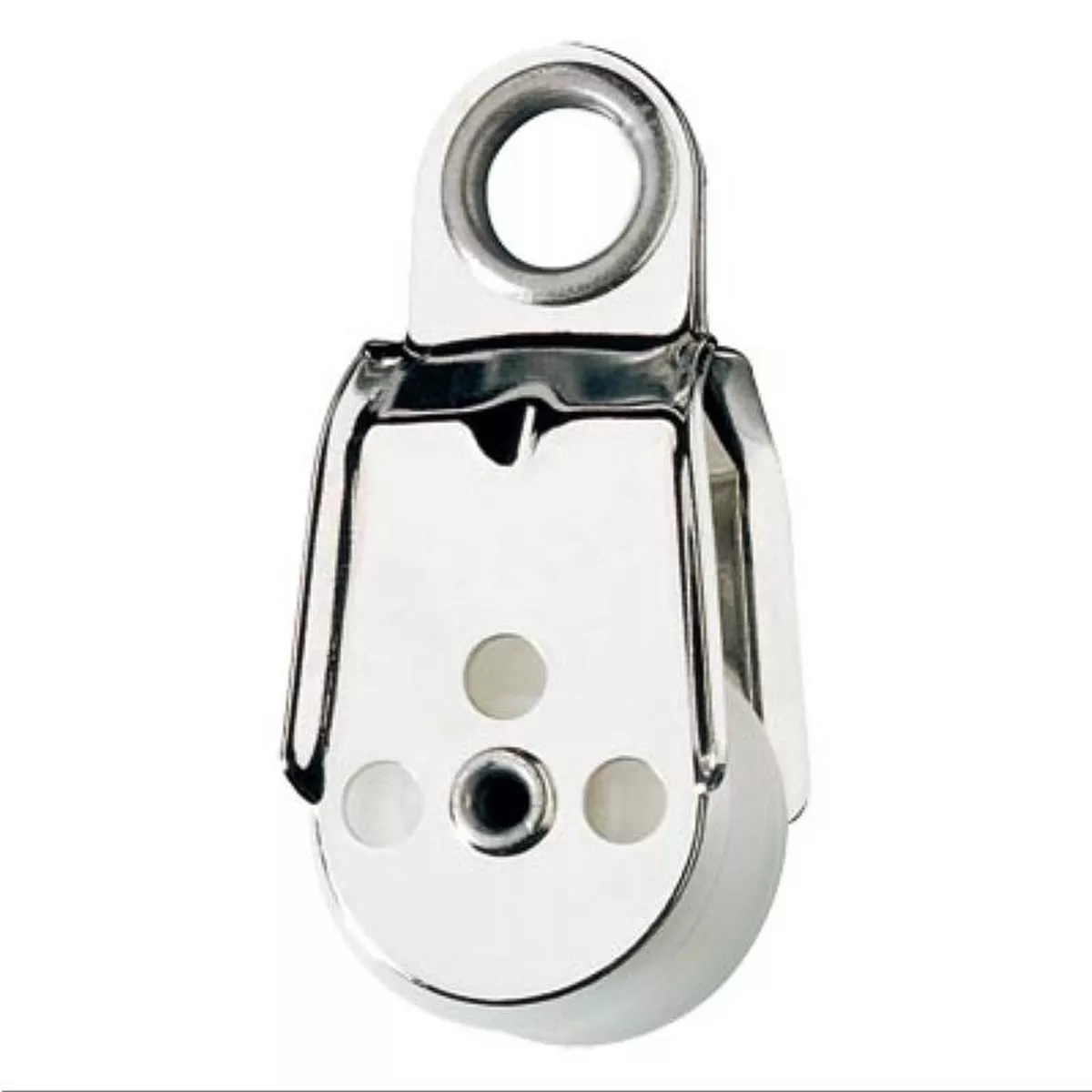

Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance.
Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase.
Features:
- Lightweight durable construction
- Economical
- Maintenance free
Applications:
- Vang, cunningham and trapeze retriever systems on dinghies
- Leech line tackles, bunk adjusters etc on larger yachts
Materials:
- U.V. stabilised Acetal sheaves
- Grade 316 stainless steel cheeks
| Part Number | Sheave Ø | Max. Rope Ø | Max. Cable Ø | Pin Ø | M.W.L. | B. L. | Weight |
|---|---|---|---|---|---|---|---|
| RON-RF469 | 30mm | 10mm | – | 10mm | 300kg | 600kg | 40g |
