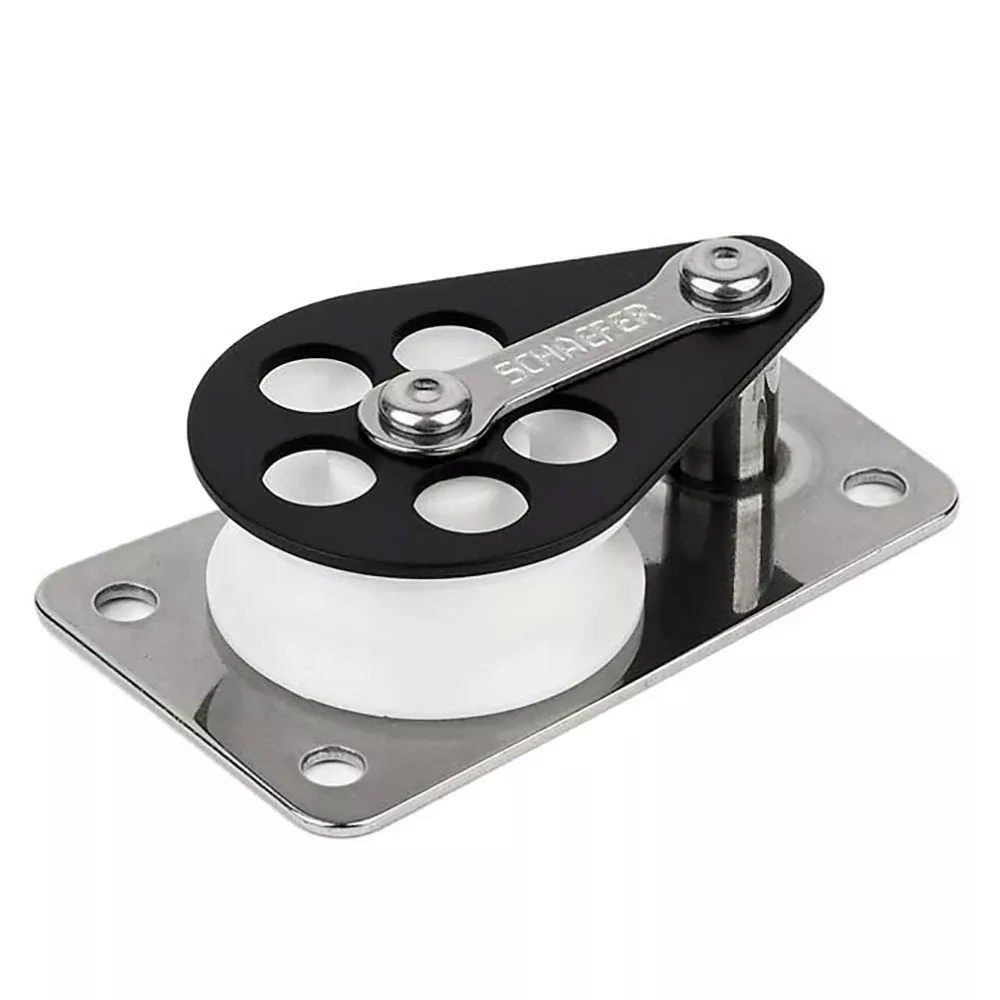

Series 3 Flat Base/Alum Cheek/Delrin Sheave
Delrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.
Specifications:
- Sheave Dia. 1-7/16″ (37 mm)
- Max Line 7/16″ (11 m)
- Length 2-7/8″ (73 mm)
- Width 1-3/4″ (44 mm)
- Height 3/4″ (19 mm)
- Fasteners (4) 10- RH (5 mm)
- C/C 2-3/8″ (60 mm)
- SWL 1000 lbs. (450 kg)
- Weight Alum. 2.5 oz. (71 g)
SKU:SCH-303-09
