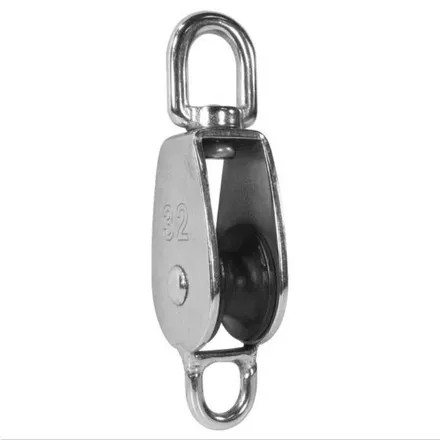

304 grade stainless steel cheeks with single, brass bushed nylon sheave. Swivelling bale head.
Heavy duty construction for commercial applications.
| Part Number | Sheave Diameter | Maximum Rope Diameter | Length (A) | Width (B) | Sheave Width (C) | Swivel Diameter (D) | MWL |
|---|---|---|---|---|---|---|---|
| BLA-166532 | 25mm | 10mm | 82mm | 30mm | 23mm | 13mm | 375kg |
| BLA-166534 | 32mm | 12mm | 114mm | 36mm | 27mm | 14mm | 425kg |
| BLA-166536 | 50mm | 14mm | 148mm | 54mm | 39mm | 19mm | 700kg |
