Tecma Silence Plus 2G Short Electric Marine Toilet for Raised Step Installation
The Tecma Silence Plus 2G Short is the compact version of the Silence Plus 2G, the “big bowl” model within the Flexi-Line range. Designed for yachts and boats where installation space is limited, it combines household-style comfort with a reduced-profile ceramic body that is optimized for raised-step mounting while maintaining the same ergonomic seating position as a standard toilet.
Designed to be installed on a raised platform approximately 100 mm (3.9 in) high, the ceramic shell height is reduced to 360 mm (14.2 in), resulting in a standard seating height of 460 mm (18.1 in). The large 510 mm (20.1 in) bowl provides enhanced comfort, while the improved 2nd Generation flushing system delivers quiet, efficient and reliable performance.
Key Features
- Large “big bowl” design for residential-style comfort
- 510 mm (20.1 in) bowl length
- Designed for installation on a 100 mm (3.9 in) raised step
- Reduced ceramic shell height of 360 mm (14.2 in)
- Standard seating height of 460 mm (18.1 in)
- Available in 12V, 24V and 230V versions
- Compatible with Standard and Multiframe control panels
- Improved 2nd Generation flushing system
- Quiet flushing operation
- Italian ceramic construction
- Low water consumption of 0.5–2.7 L per flush
- Suitable for yachts and boats requiring space-efficient sanitary installations
Installation Benefits
- Optimized for raised-step installation without compromising seating comfort.
- Hidden installation design enhances the appearance of the bathroom.
- Side-fixing installation system simplifies mounting.
- Smooth ceramic surfaces facilitate cleaning.
- Integrated safe air admittance valve improves discharge line ventilation.
- Optimized hydraulic design helps prevent siphoning and backflow.
- Reduced installation time and shipyard labor requirements.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Silence Plus 2G Short |
| Bowl type | Big bowl |
| Power supply options | 12V / 24V / 230V |
| Water consumption | 0.5–2.7 L (0.1–0.7 gal) per flush |
| Ceramic shell height | 360 mm (14.2 in) |
| Seat height | 460 mm (18.1 in) |
| Bowl length | 510 mm (20.1 in) |
| Overall dimensions (H × W × D) | 360 × 390 × 510 mm (13.8 × 15.4 × 20.1 in) |
| Footprint | 405 × 280 mm (15.9 × 11.1 in) |
| Weight | 23.5 kg (51.8 lb) |
| Discharge pump | MAC 11 |
| Water inlet system | Solenoid valve |
| Optional inlet system | Inlet pump |
| Standard control panel | All-in-One SFT |

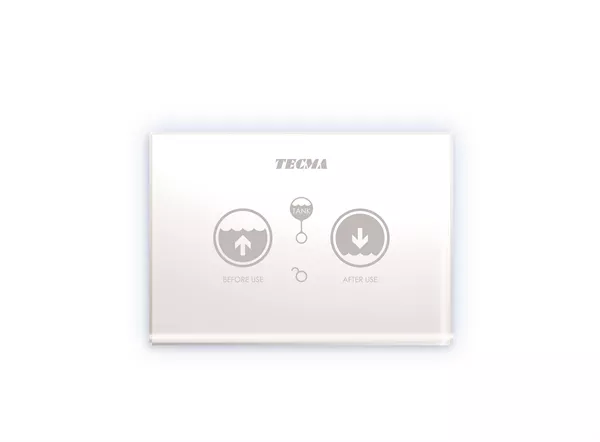

| Optional control panels | Multiframe SFT / Touch SFT Multifunction |
| Standard color | White |
| Optional colors | Bone / Black |
Seat and Cover Options
- Polyester coated wood
- Polyester coated wood with soft-close (white)
- Polyester coated wood with soft-close (black)
- Thermosetting seat
- Thermosetting seat with soft-close
- Available in white or bone finish
Outlet Pump Specifications
| Parameter | Specification |
|---|---|
| Pump model | MAC 11 |
| Available voltages | 12V DC / 24V DC / 110–125V AC / 220–240V AC |
| Maximum pump capacity | 270 L/min (71.3 gpm) |
| Maximum vertical head | 11 m (36.1 ft) |
| Maximum horizontal distance | 90 m (295.3 ft) |
| Outlet connection | 1.5 in (38.5 mm required ID) |
Applications
The Tecma Silence Plus 2G Short is designed for yachts and boats requiring maximum comfort within limited installation space. Its compact raised-step configuration, large bowl, efficient flushing system and multiple electrical configurations make it suitable for a wide variety of onboard sanitary layouts while maintaining consistent Flexi-Line design throughout the vessel.
