Uflex Rotech Rotary Steering Kit with 9′ Cable #ROTECH09FC

Uflex USA ROTECH09FC Steering Kits

ROTECH™ STEERING SYSTEM

ROTECH – X09
T71FC – helm
X34 – 90° bezel
M66 – 9′ steering cable

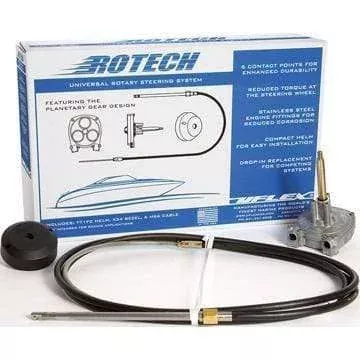

UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:

A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.

Mechanical rotary steering kit includes everything needed to replace the steering of single-station boats with a single power-assisted sterndrive, inboard, or outboard engine. Includes new helm, mounting bezel, & steering cable. Sold in 1 foot increments from 6 to 30 feet.

FEATURES AND TECHNICAL SPECIFICATIONS:

• Fast connect, simple installation
• All stainless steel cable output ends
• Corrosion resistant materials
• Particulary suitable where clearance is limited
• Standard 3/4″ tapered shaft
• Lock-to-lock steering wheel turns: approx. 3,8
• Stroke: 9″ (228 mm)
• Maximum allowable steering wheel diameter: 16″ (406 mm)
• Minimum steering cable bend radius: 7.9″ (200 mm)
• Minimal feedback
• Compact for mounting
• T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat
• For boats faster than 50 mph the twin cable steering system T72FC is recommended
• Exceeds EN 28848 safety standards
• Exceeds ABYC P17 safety standards
• Rotech rotary steering kits
• Includes T71FC helm, X34 90 degree mounting bezel, and M66 steering cable
• Fast, simple installation
• Designed to be a drop in replacement for most competitive steering systems
• Helm has standard 3/4 in. tapered shaft
• Helm features a planetary gear design that allows for equal distribution of engine torque over three points of the central gear, dividing and balancing system load
• All stainless steel cable output ends
• 3.8 steering wheel turns lock-to-lock
• Maximum allowable steering wheel diameter: 16 in.
• Not for use with boats faster than 50 mph

**The wheel is not included

Normalized SKU: ROTECH09FC
UPC Code: 702755019312
