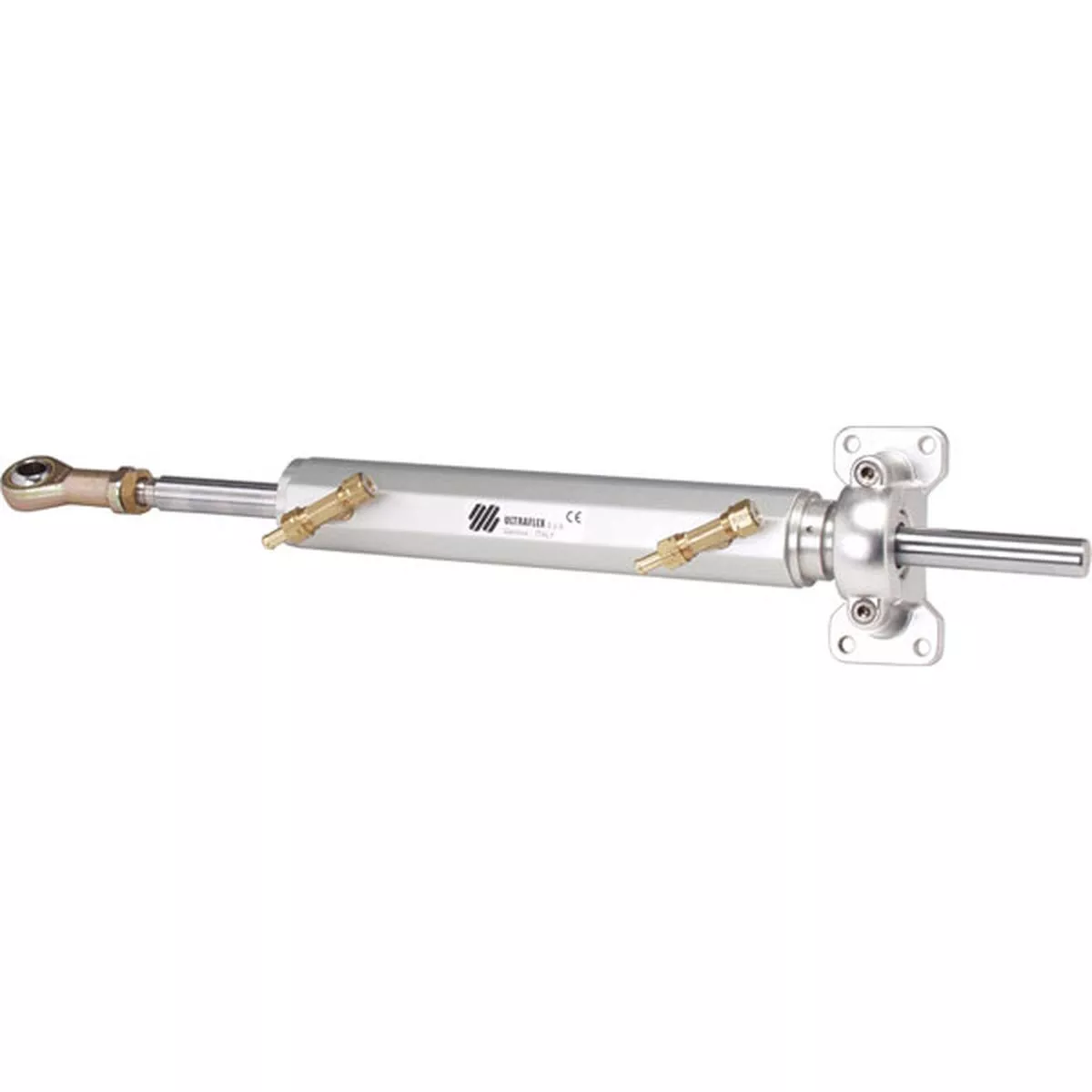

Ultraflex Hydraulic Inboard Cylinder – UC168-I
- For inboard engines.
- Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa.
- Maximum rudder torque 87 kgm (7565 lbs. in).
- The UC168-I cylinders are recommended for use with UP28 or UP33 series helms and pre-assembled hoses (Kit OB and Kit OB/R5).
- Nylon tubing 3/8″ SAW-84101 can be used as an alternative to the standard KIT-OB hose kit for plumbing the system.
- 3/8″ (9.5mm) fittings for high pressure flex hose.
| Part number | Volume | Output Force | Inside Diameter | Stroke | Torque |
|---|---|---|---|---|---|
| SAW-83961 | 168 cc – 10.25 cu.in | 673 kg – 1483 lbs | 40mm – 1.57″ | 178mm – 7″ | 87 kgm – 7565 lbs.in |
