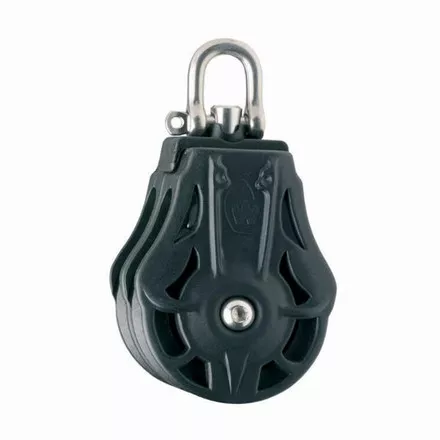

Wichard Double Ball Bearing Block – Swivel Head
- Complete range of ball bearing blocks
- Modern design
- Innovative design with two lateral races of ball bearings
- Smooth running for low load and high speed action
- Under high load the hub runs on stainless steel bush which allows the sheave to run freely
- Light cheeks protecting the sheave
- Wide choice of fastenings thanks to the universal head
Applications:
- Mainsail systems and travelers
- Spinnaker sheets
- Genoa sheets
Materials:
Grade 316L stainless steel head configuration
Grade 316L stainless steel load straps
POM cheeks
Delrin® ball bearings
Composite saddle for cam models
Composite sheave
Terminal (shackle i.e…): 316L stainless steel grade
| Part Number | Sheave Diameter | Rope size | Length | Width | Thickness | Sheave diameter | Schackle diameter | Working load | Breaking load | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| WCH-72205 | 35mm | 8 – 9mm | 84mm | 37mm | 40mm | 35mm | 5mm | 480kg | 900kg | 119g |
| WCH-73205 | 45mm | 10mm | 97mm | 49mm | 46mm | 45mm | 5mm | 480kg | 1000kg | 184g |
| WCH-74205 | 55mm | 12mm | 119mm | 63mm | 52mm | 55mm | 6mm | 800kg | 1500kg | 315g |
| WCH-75205 | 70mm | 14mm | 153mm | 80mm | 68mm | 70mm | 8mm | 1440kg | 2700kg | 635g |
